Experiment Name: Study on gearing of front roller of ring
frame.
Introduction: Front roller is located on the drafting zone
of the ring frame. Production of ring frame is depend on the speed of ring
frame.
Objective:
1) To learn about gearing of front roller of ring frame.
2) To learn about related machine parts transmit motion to
front roller.

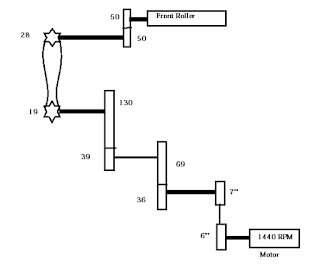

Figure:
Calculation:
Speed of front roller
= (1440 X 6 X 36 X 39
X 19 X 50) / (7 X 69 X 130 X 28 X
50) RPM
= 131
